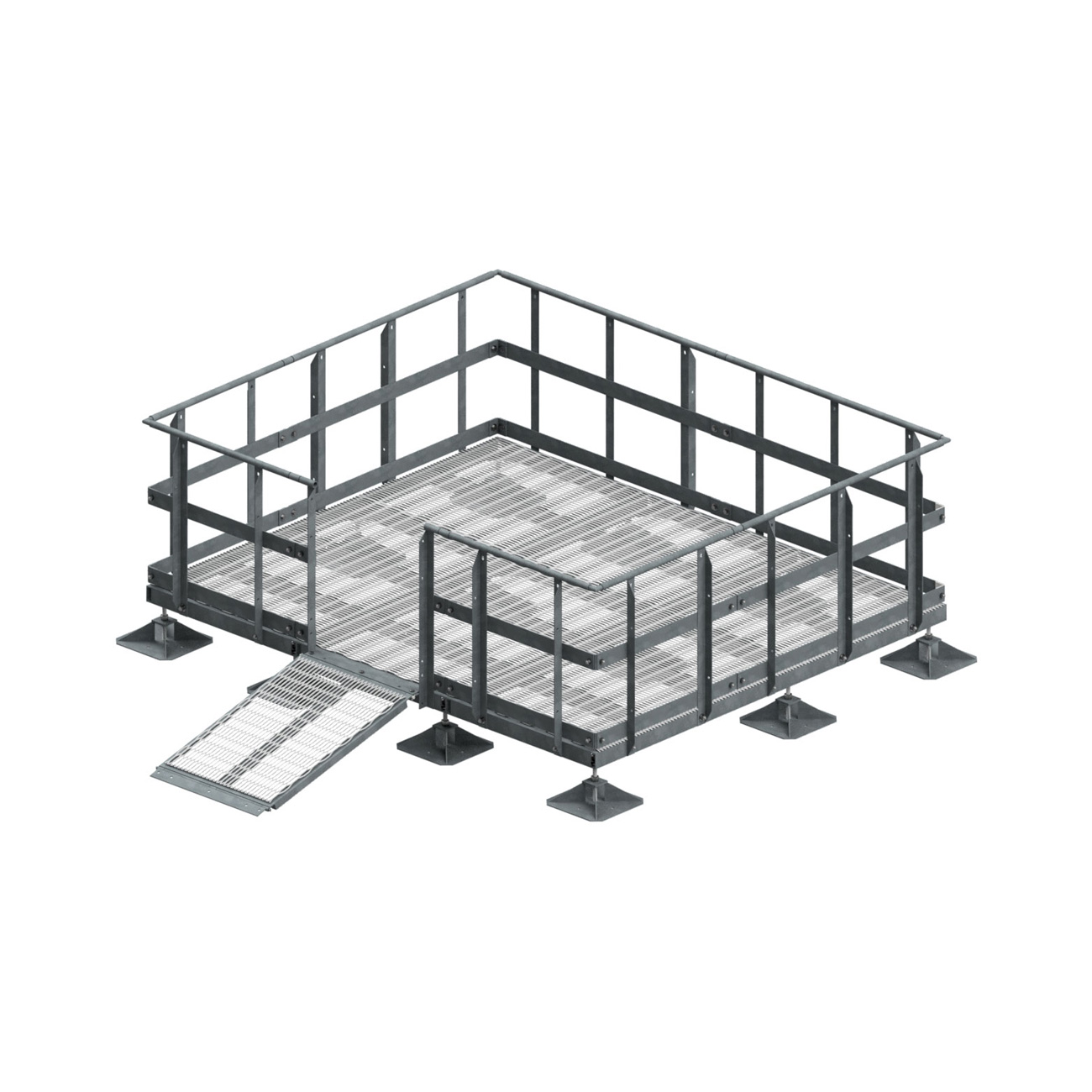

10' x 12' Equipment Platform with Handrail, Entrance
$6,405.00
Part Number: MEP1012-6LH44R5
Qty.
Size: 10' x 12'
Components & Sub Assembly: (3) MEP46 (3) MEP44 (12) MPAD-L (4) MRAIL-6 (4) MRAIL-4
Components (Con't): (1) MRAMP (1) MOPEN (5) MSPLICE-S (4) MSPLICE-C
Call for availability.
• MEP1012-6LH44R5 • Equipment Platform 10' x 12' plus Accessories
• Size 10' x 12'
• Components - Sub Assembly
  (3) 4' x 6' Frame - MEP46
  (3) 4' x 4' Frame - MEP44
  (12) Large Footpad - MPAD-L
  (4) 6' Handrail - MRAIL-6
  (4) 4' Handrail - MRAIL-4
  (1) 5' Access Ramp - MRAMP
  (1) 4' Entrance - MOPEN
  (5) Straight Splice - MSPLICE-S
  (4) Corner Splice - MSPLICE-C
• Pre-Designed Platform Kits
• Easy deployment for any site such as rooftops or ground sites
• Adjusts for flat and sloped roofs
• Can be used on variety of soil types
• Modular design assembles in minutes and allows for future expansion
• In stock for immediate shipment
• Total Frame Capacity
  Distributed Deadload 31,500 lb
  Distributed Windload 7,910 lb
• Channel Capacity (Critical Load Point)
  Concentrated Deadload 3,000 lb
  Concentrated Uplift 3,000 lb
• Expanded Metal Capacity (Critical Load Point)
  2' Panel Deadload 1,000 lb
  2' Panel Uplift 1,000 lb
