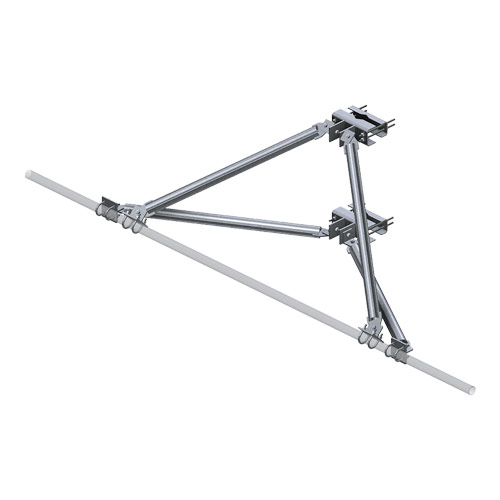

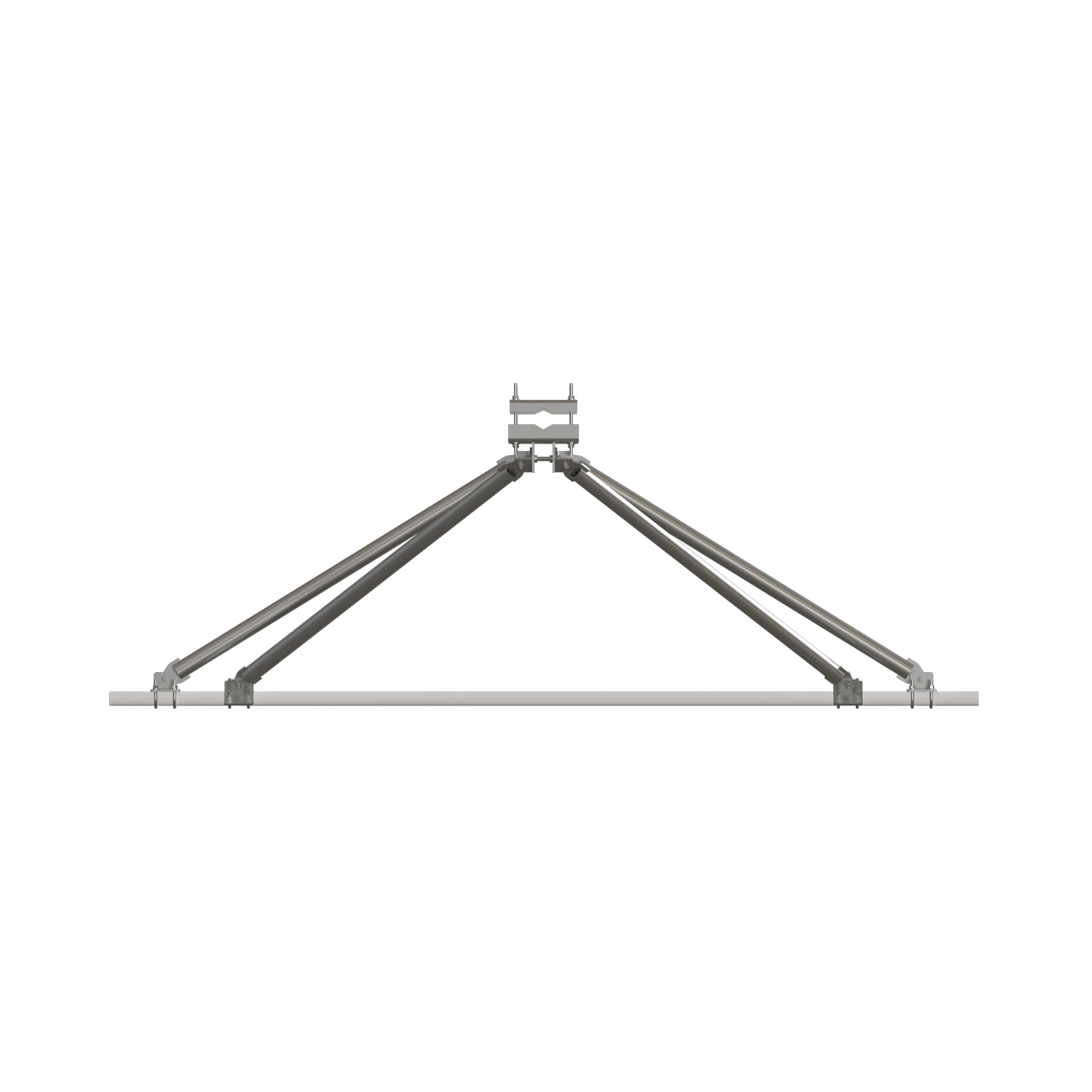

V-Style Sector Frame Reinforcement Kits (Pipe) (Face Width 12’ - 6” Application 36” to 48” Standoff Weight 205 lb)
$1,100.00
Part Number: VSK-SFR-L
Face Width: 12’ - 6”
Application: 36” to 48” Standoff
Weight: 205 lb
In Stock
Available for delivery.
- VSK-SFR-L
- Face Width: 12’ - 6”
- Application: 36” to 48” Standoff
- Weight: 205 lb
- Universal design provides extra capacity to existing Sector Frames for mounting RRU’s
- Provide both vertical and horizontal reinforcement
- Pipe bracing for reduced wind area
- Fit 2-3/8” or 2-7/8” OD Crossarms
- The maximum additional normal load capacity gained is 1,200 lb, the maximum additional tangential load capacity gained is 400 lb, and the maximum additional dead load capacity gained is 1,500 lb
- Universal mounting; round legs from 1” to 8”, 60° angle legs from 1-1/2” to 8”, and 90° angle legs from 1-1/2” to 6” Large-Leg Adapter Kit available for round legs up to 12-3/4”, 60° angle legs up to 12”, and 90° angles up to 8-1/2”
- Contact us for detailed load and engineering data
