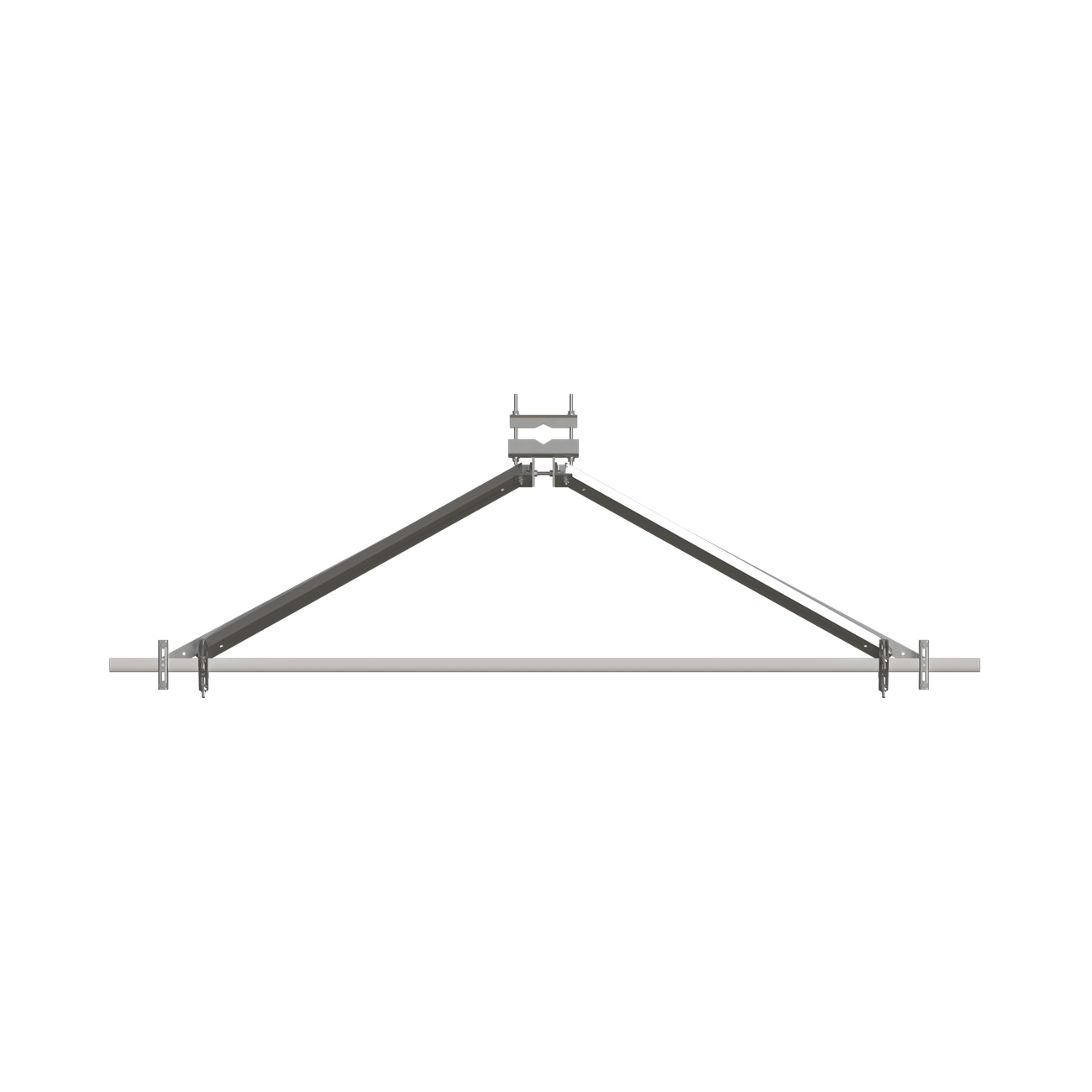

• SFR-K-L • Sector Frame Reinforcement 36'' to 48'' Standoff
• XLD Sector Frame Reinforcement Kit
• Application 36'' to 48'' Standoff
• Face Width: 12' 6'' • Weight 153 lb
• Universal design provides extra capacity to existing
  sector frames for mounting RRU’s
• Provides both vertical and horizontal reinforcement
• Max additional normal load capacity gained is 1,200 lbs
• Max additional tangential load capacity gained is 400 lbs
• Max additional dead load capacity gained is 1,500 lbs
• Universal mounting, round legs from 1'' to 8'' and 60° angle
  legs from 1-1/2'' to 8'', 90° angle legs from 1-1/2'' to 6''
• Large-Leg Adapter Kit available for round legs up to 12-3/4'',
  60° angle legs up to 12'', and 90° angles up to 8-1/2''
• Contact us for detailed load and engineering data
