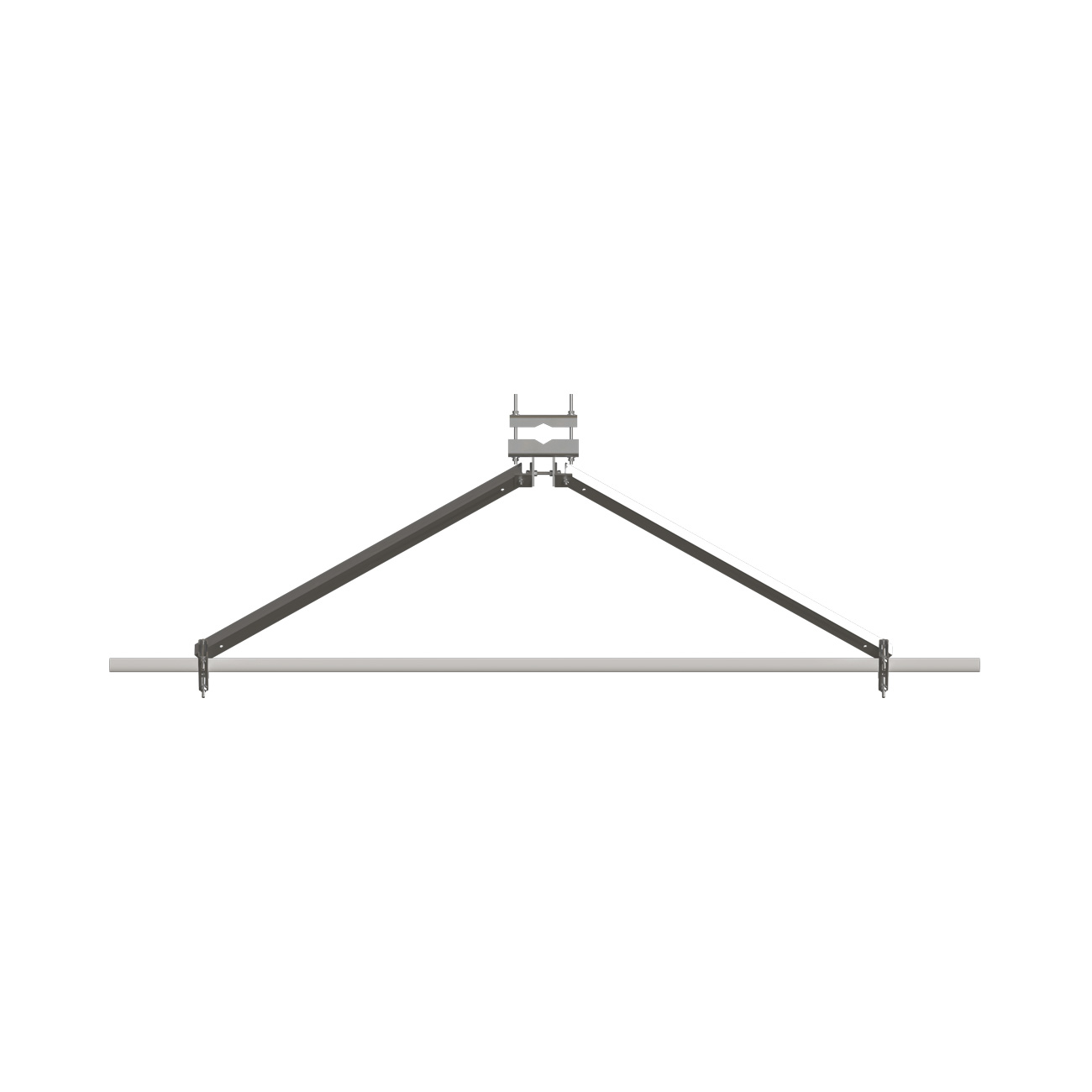

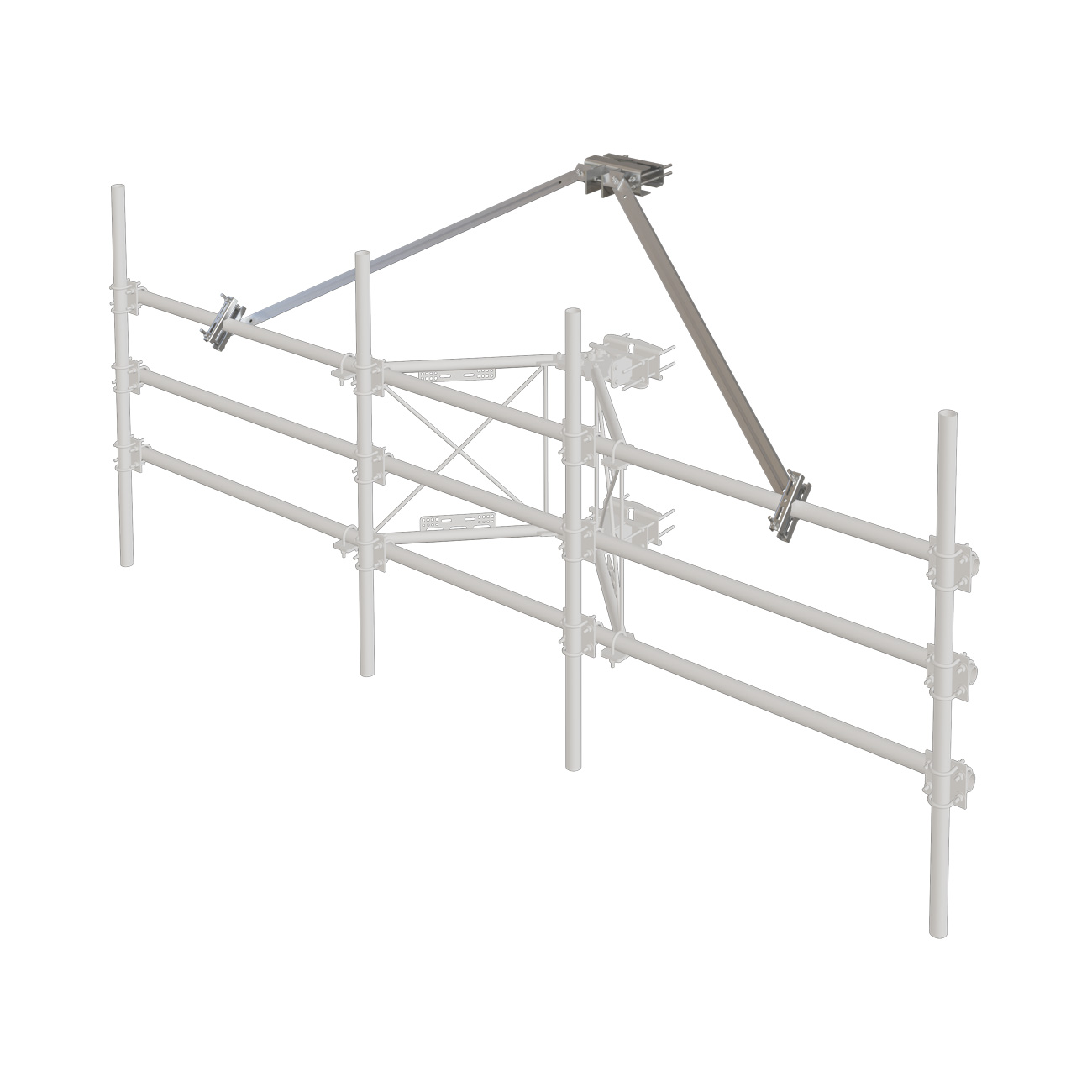

• SFS-V-L • XLD Sector Frame Stabilizer Kit Vertical 36'' to 48''
• Vertical Sector Frame Stabilizer
• Application 36'' to 48'' Standoff • Weight 77 lb
• Adds additional support to existing sector frames
• SFS-H • based on design criteria noted in capacity letter
Max additional normal load capacity gained is 1,050 lbs
Max additional tangential load capacity gained is 300 lbs
Max additional dead load capacity is 0 lbs
• SFS-V • based on design criteria noted in capacity letter
Max additional normal load capacity gained is 0 lbs
Max additional tangential load capacity gained is 300 lbs
Max additional dead load capacity is 1,500 lbs
• Universal mounting, round legs from 1'' to 8'' and 60° angle legs
from 1-1/2'' to 8'', 90° angles 1-1/2'' to 6''
• Contact us for load and engineering data
