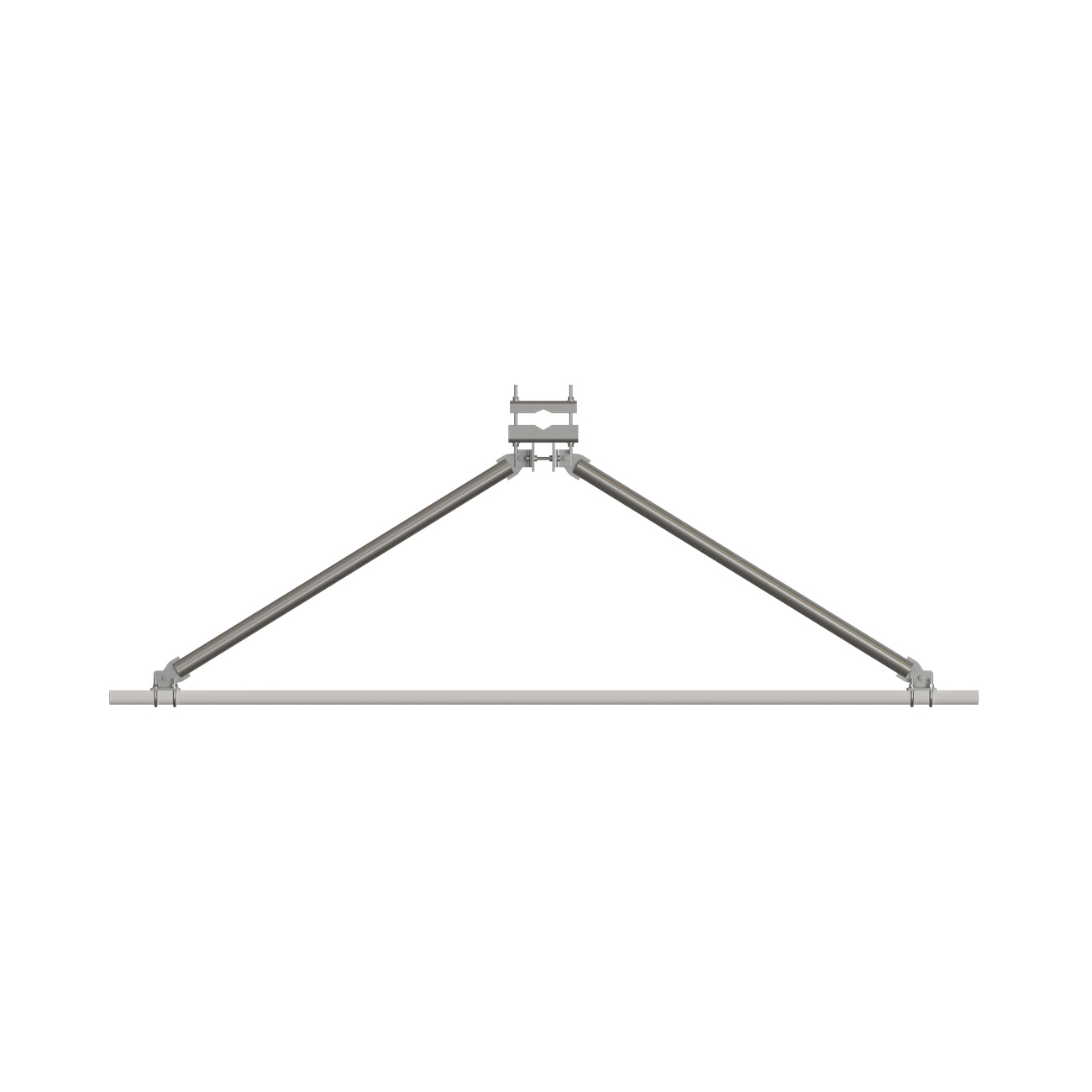

V-Style Sector Frame Stabilizer Kits (Pipe) (Stabilizer Horizontal Application 36” to 48” Standoff 120 Weight 120 lb)
$545.00
Part Number: VSK-TH-L
Stabilizer: Horizontal
Application: 36” to 48” Standoff 120
Weight: 120 lb
In Stock
Available for delivery.
- VSK-TH-L
- Stabilizer: Horizontal
- Application: 36” to 48” Standoff 120
- Weight: 120 lb

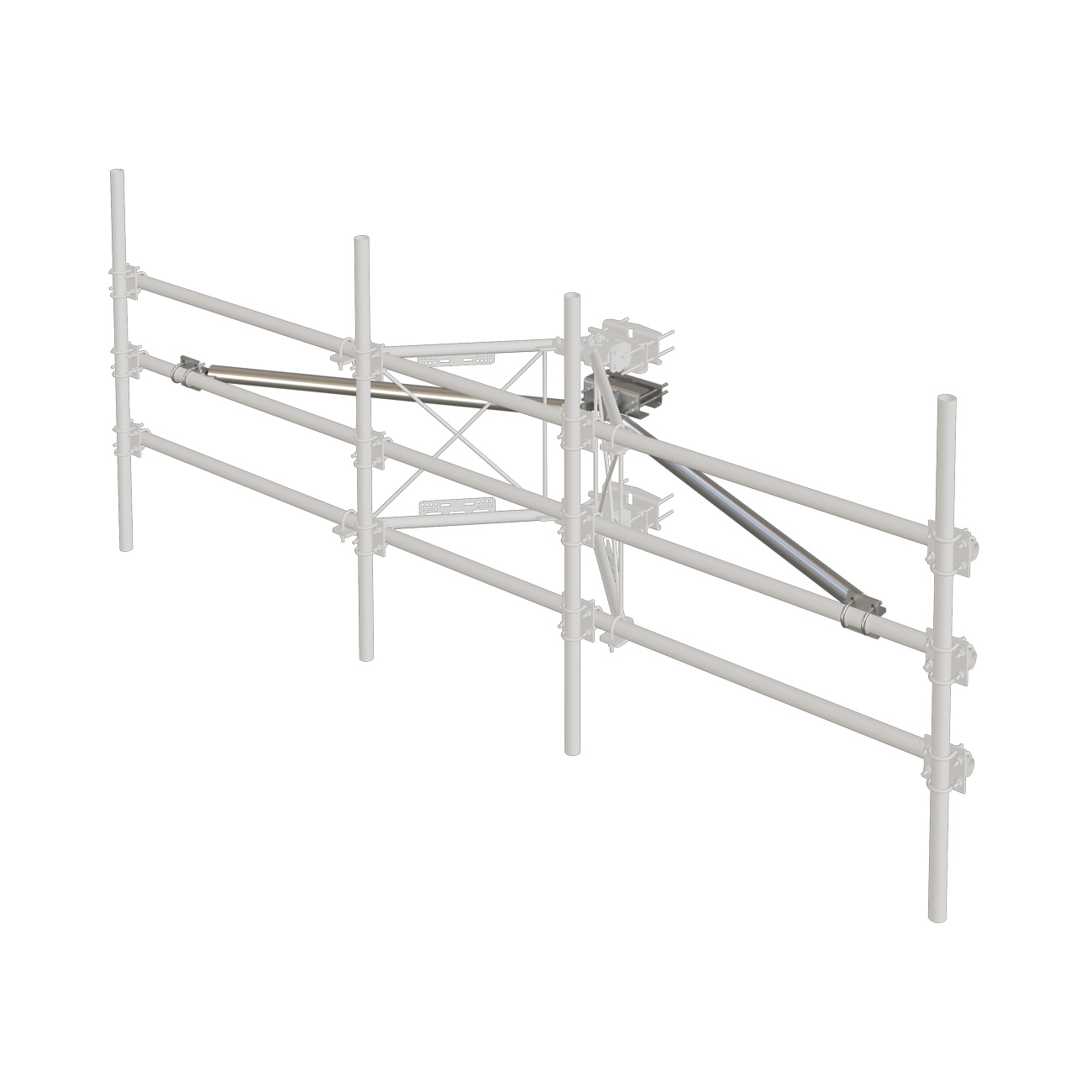

- Provide additional support to existing sector frames
- Pipe bracing for reduced wind area
- Fit 2-3/8” or 2-7/8” OD Crossarms
- For VSK-TH and VSK-TH-L, based on design criteria noted in capacity letter, the maximum additional normal load capacity gained is 1,050 lb, the maximum additional tangential load capacity gained is 300 lb, and the maximum additional dead load capacity is 0 lb
- For VSK-TV and VSK-TV-L, based on design criteria noted in capacity letter, the maximum additional normal load capacity gained is 0 lb, the maximum additional tangential load capacity gained is 300 lb, and the maximum additional dead load capacity is 1,500 lb
- Universal mounting; round legs from 1” to 8”, 60° angle legs from 1-1/2” to 8”, and 90° angles 1-1/2” to 6”
- Contact us for load and engineering data
